Double Electric Slewing 12m Concrete Placing Boom Cable and Remote Control

Name: Double Electric Slewing 12m Concrete Placing Boom Cable and Remote Control
Brand: Jinan Avitt International Trade Co., Ltd-HYCM Tower Crane
SKU: Boom penempatan 12m
Price: 4,750.00 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: AVITT TAICHANG OR OTHERS

Sertifikasi: CE, ISO

Nomor model: Boom penempatan 12m

Dokumen: Brosur Produk PDF

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 3

Harga: $3600-5900 per set

Kemasan rincian: Pengepakan telanjang, kontainer 1*20'GP atau 1*40'HC untuk booming penempatan 12m

Waktu pengiriman: 10 hari setelah menerima setoran

Syarat-syarat pembayaran: TT, LC

Menyediakan kemampuan: 4000 set per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                12m electric concrete placing boom, double slewing concrete pump boom, remote control concrete placing boom


Kondisi:	100% baru	Aplikasi:	Bangunan dan proyek
Jenis:	Spider Mobile	Ledakan bekerja:	11,2 m
Lingkup Rotasi:	360	Elemen Listrik:	Chnt atau schneider
Catu daya:	380V/50Hz atau sesuai dengan kebutuhan klien	Warna:	Kuning atau sesuai kebutuhan klien
Sistem Kontrol:	yang biasa

Kondisi:	100% baru
Aplikasi:	Bangunan dan proyek
Jenis:	Spider Mobile
Ledakan bekerja:	11,2 m
Lingkup Rotasi:	360
Elemen Listrik:	Chnt atau schneider
Catu daya:	380V/50Hz atau sesuai dengan kebutuhan klien
Warna:	Kuning atau sesuai kebutuhan klien
Sistem Kontrol:	yang biasa

Deskripsi Produk

Double Electric Slewing 12m Concrete Placing Boom Cable and Remote Control

Performance parameters

Мах. boom length - 11. m;

Concrete pipe line (steel, DN125 mm)

Support - outrigger (4 legs);

Remote control - wired remote control.

Specification

Model			12m electric type
Performance	Horizontal reach(m)		11.2
	Rotation(°)		360°
	Slewing brake		Normally closed
	Working environment temperature		-20℃～40℃
	Weight(T)	Without counterweight	1.2
		With Counterweight	1.8
Control System	Power Supply		380V/50HZ, 3Phase
	Power(kW)		750w*2
	Control mode		remote
Boom	Duct cleaning method		Wash/Dry cleaning
	Boom open way		Two
	Inner diameter of delivery pipe(mm)		Φ125
	End rubber hose(m)		2

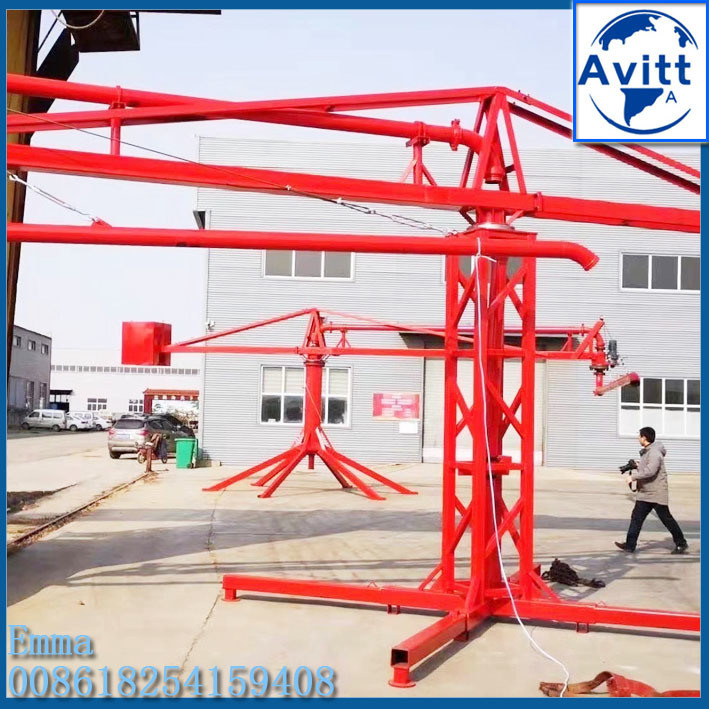

The concrete placing boom consists of arm assembly, a rotating device, upper and lower supports, a chassis, concrete pipelines, and an electrical control system.

The boom is a 2 section box structure, which is extended and folded by.

When combined with a rotating mechanism, it can transport concrete to the required construction surface.

The electrical control system can achieve wired and remote operation.
