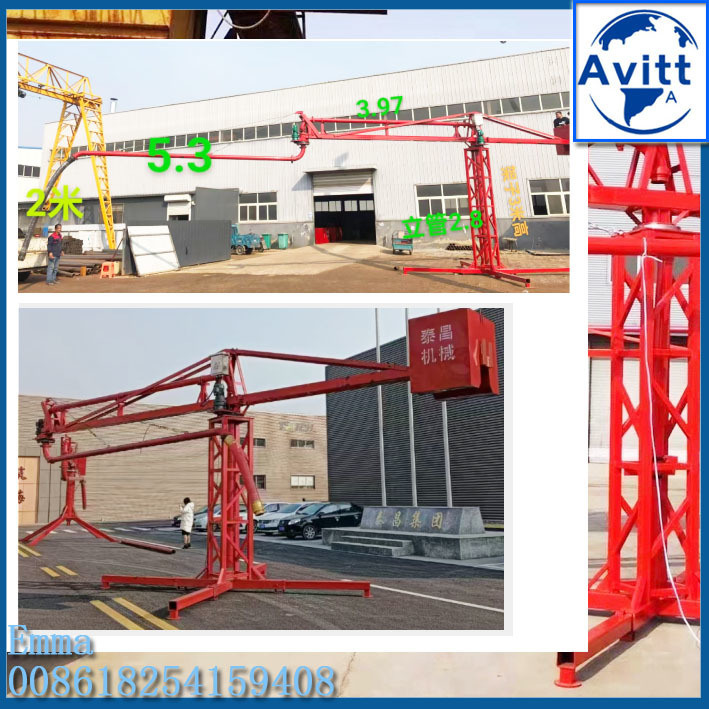

Small 12m Concrete Placing Boom Electric Motor Slewing Square Steel Frame

Name: Small 12m Concrete Placing Boom Electric Motor Slewing Square Steel Frame
Brand: Jinan Avitt International Trade Co., Ltd-HYCM Tower Crane
SKU: Boom penempatan 12m
Price: 4,750.00 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: AVITT TAICHANG OR OTHERS

Sertifikasi: CE, ISO

Nomor model: Boom penempatan 12m

Dokumen: Brosur Produk PDF

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 3

Harga: $3600-5900 per set

Kemasan rincian: Pengepakan telanjang, kontainer 1*20'GP atau 1*40'HC untuk booming penempatan 12m

Waktu pengiriman: 10 hari setelah menerima setoran

Syarat-syarat pembayaran: TT, LC

Menyediakan kemampuan: 4000 set per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                small concrete placing boom, electric motor slewing boom, square steel frame boom


Kondisi:	100% baru	Aplikasi:	Bangunan dan proyek
Jenis:	Spider Mobile	Ledakan bekerja:	11,2 m
Lingkup Rotasi:	360	Elemen Listrik:	Chnt atau schneider
Catu daya:	380V/50Hz atau sesuai dengan kebutuhan klien	Warna:	Kuning atau sesuai kebutuhan klien
Sistem Kontrol:	yang biasa

Kondisi:	100% baru
Aplikasi:	Bangunan dan proyek
Jenis:	Spider Mobile
Ledakan bekerja:	11,2 m
Lingkup Rotasi:	360
Elemen Listrik:	Chnt atau schneider
Catu daya:	380V/50Hz atau sesuai dengan kebutuhan klien
Warna:	Kuning atau sesuai kebutuhan klien
Sistem Kontrol:	yang biasa

Deskripsi Produk

Small 12m Concrete Placing Boom Electric Motor Slewing Square Steel Frame

Performance parameters

Мах. boom length - 11. m;

Concrete pipe line (steel, DN125 mm)

Support - outrigger (4 legs);

Remote control - wired remote control.

Specification

Model			12m electric type
Performance	Horizontal reach(m)		11.2
	Rotation(°)		360°
	Slewing brake		Normally closed
	Working environment temperature		-20℃～40℃
	Weight(T)	Without counterweight	1.2
		With Counterweight	1.8
Control System	Power Supply		380V/50HZ, 3Phase
	Power(kW)		750w*2
	Control mode		remote
Boom	Duct cleaning method		Wash/Dry cleaning
	Boom open way		Two
	Inner diameter of delivery pipe(mm)		Φ125
	End rubber hose(m)		2

The concrete placing boom consists of arm assembly, a rotating device, upper and lower supports, a chassis, concrete pipelines, and an electrical control system.

The boom is a 2 section box structure, which is extended and folded by.

When combined with a rotating mechanism, it can transport concrete to the required construction surface.

The electrical control system can achieve wired and remote operation.

Service
a. Rapid response to any inquiry(within 3 hours) and 24 hours on-line service.
b. Competitive price which directly work with facotry. Welcome to visit us.
c. Professional inspection department to guarantee quality.
d. Engineers will go to construction site for guiding the installation and test-running for first time.
e. Easy-worn Spare parts is free supplied along with the tower crane.
f. 12 months super long time guarantee period.

Our Service
------Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
------Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
------Warranty Assurance
For our tower crane, we provide 1 year warranty period and quick replace service.
------The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.

Other types tower cranes, topless and luffing type are also available, besides, we accept OEM according to clients needs.

Small 12m Concrete Placing Boom Electric Motor Slewing Square Steel Frame 0

Small 12m Concrete Placing Boom Electric Motor Slewing Square Steel Frame 1
